SOUND DEPARTMENT

Live 5.1 Streaming | 64 Track Recording |​Sound Reinforcement

Live 5.1 STREAMING and recording
CINELIVE 35 MOBILE

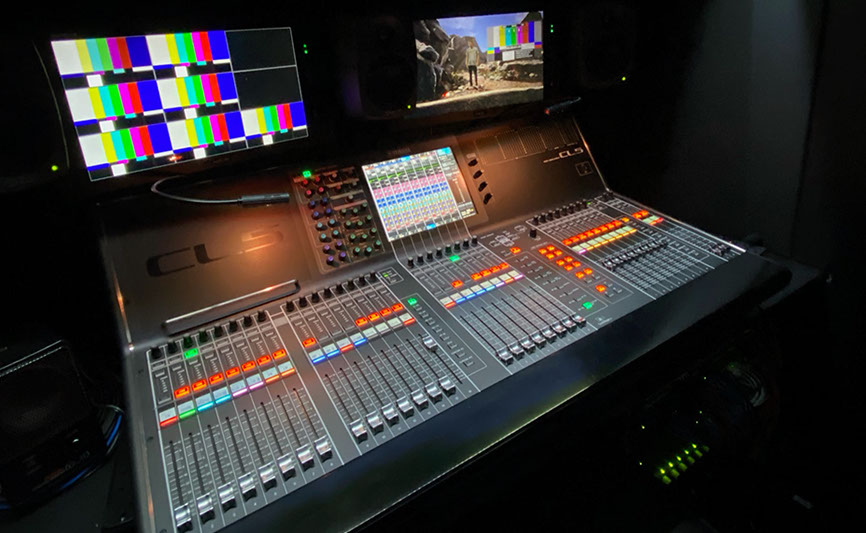

Yamaha CL5
64 Channel Mixing Console
Dante MADI/AES/EBU8 channels of ​AES/EBU64 channels
Dante64 channels MADI4 redundant solid state recording bays
96 input/output analog patch-bay.
1 RIO S32 x 16 Dante digital stage box
1 RIO S16 x 8 Dante digital stage box
DIRECT Boxes2 Radial JDI Duplex
2-channel 2 Radial Pro
DI2 Radial Pro 482 Whirlwind EDB1 direct box

S OUND DEVICES 970 Dante Recorder
64 channels Dante.
64 channels MADI.
136 channels of digital connectivity Dante / MADI / AES/EBU.
8 channels of AES/EBU.
4 redundant solid state recording bays.
96 input/output analog patch-bay.
All inventory microphones as needed are included in unit package pricing.

GENELEC 5.1 Monitoring. (Mix Booth and Production Control Room.)
5 - 8320APMs, 1 - 7350A Sub-woofer & GLM V2.0 Mix booth design and monitor placement is dimensional accurate, (all 5 points), to ear placement.
Room acoustically engineered for Genelec 8320 live surround mixing monitors.

Sound Proofing Wall Construction.
Double sheet exterior/interior aluminum skin, thermal foam filled.
Aluminum, 1"x1" stud framing.
Spun fabric insulation.
Aluminum / Wood, sandwiched layer of sound deadening material.
Wood interior layers upholstered with foam and stretched automotive leather - black skin finish.

DANTE
Digital Audio Network. Number of (Dante) Digital I/O Channels 64 in / 64 out
Unit travels with 1 Rio 3224-D2 digital remote I/O station with 2-1000ft fiber cable links, one for redundancy.
Mix Buses, 24.
Input Mixing Channels, 72 mono + 8 stereo.Number of Scenes 300.

INTERCOM
WIRELESS | WIRED | GLOBAL


RTS ODEN
Dante digital 48 port intercom.

CLEARCOM
Matrix Intercom Systems

(Coupled to Oden)
8 - 16 channel programmable user stations in unit. (Audio, AD, Producer, Director, TD, Video, Lighting, FOH)
15 - RTS Two Channel Wired Beltpacks.

IFB
4 channels IFB interrupt, (located on Producer/Director/AD user stations)
4 Wired IFB
2 - Shure PCM 900 Wireless Monitor System.
P9T Transmitter and PR9A+ Wireless Bodypack Receiver.

FREESPEAK I I
Digital Wireless Intercom.
(Coupled to Oden)
5 Channels wireless.
1.9 GHz Dect 6.0
15 Wireless Beltpack Stations.
1 to 6 dedicated to camera department. (Based on # of cameras used)
Network Antenna System. 4 antenna units - allows arena size coverage for 20 wireless stations.

David Clark Headsets
 "Loud Environment" headsets for camera operations.


 UNITY INTERCOM
Connects globally over WIFI and cellular.
Self-Hosted Server Version.
Integrates with RTS Oden via DANTE

SOUND REINFORCEMENT
SOUNDSTAGE A

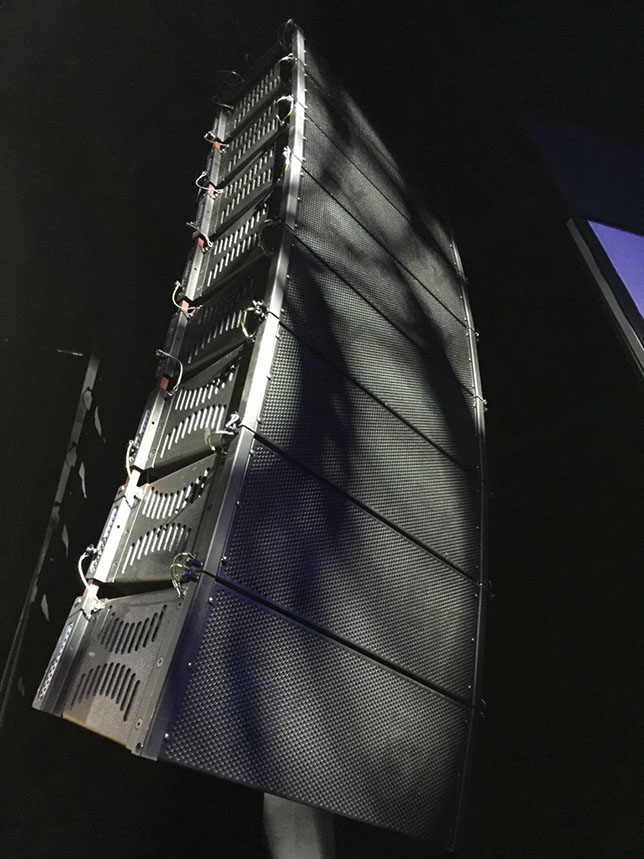

3-way stereo line array system with subwoofers

(16) Electro-Voice XLD281, 120 degree horizontal, line array elements (8 per side - Flown)
(4) Electro-Voice X12i dual 18” Super-high-output subwoofer cabinets (2 cabinets per side - 8 total 18" subwoofers - Stage L/R Deck)
(16) Electro-Voice V TG7 power amplifiers with RCM-26 DSP control modules

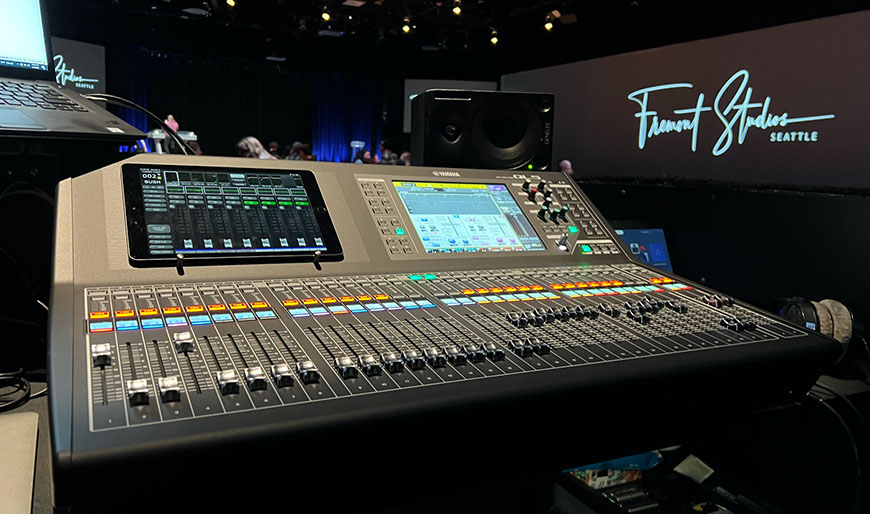

YAMAHA QL5

64-Channel Digital Mixing Console
1 RIOS S32 x 16 Dante digital stage box
1 RIOS S16 x 8 Dante digital stage box
Electro-Voice IRIS-net control software (DSP control for TG7 amplifiers)
(1) dbx Driverack 260 for subwoofer crossover and processing

STAGE MONITORS: 8 Electro-Voice Tour-X TX1122FM passive 2-way floor monitors
6 discrete monitor mixes.  Monitors are mixed from the FOH console.  Separate monitor console available upon request.3 - Behringer X32 digital mixing consoles (Monitors) (firmware version 2.10)

DIRECT Boxes: 2 Radial JDI Duplex 2-channel direct box
2 Radial ProDI
2 Radial Pro48
2 Whirlwind EDB1 direct box

INTERCOM:
1 - Clearcom FreeSpeek II Wireless Intercom, 4 antenna system
15 - Clearcom FreeSpeek II Wireless 5 Channel Beltpacks

Soundstage A - Awesome PA Acoustics​...

SOUNDSTAGE B SOUND REINFORC​EMENT

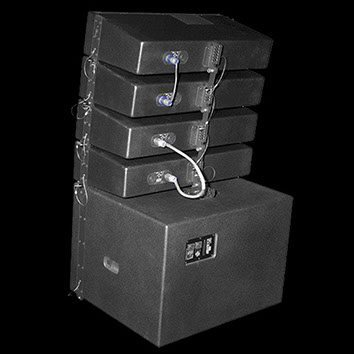

Compact Line Array System

Stereo R6/R12a Compact Active Line Array System
3000W amplifiers per side
Grid Flown

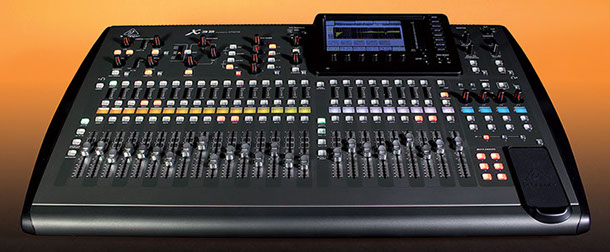

Behringer X32 digital mixing console
Monitors are mixed from the FOH console.  Separate monitor console available upon request.

microphones

STUDIO | LIVE PERFORMANCE | LOCATION
OVER 100 CLASSIC MICROPHONES

WIRELESS Microphones: (14 Systems)
Shure G-50 ULXD4 Quad Receivers (8 total channels)
Shure G-50 ULXD2 K8B capsules handheld transmitters
Shure G-50  ULXD1 beltpack transmitters
6 Sennheiser G-2 ew300 Series Receivers
4 Sennheiser G-2 handheld transmitters (3 x 835 capsules, 1x 865 capsule)
4 Sennheiser G-2 beltpack transmitters
Audio Technica AT898 cardioid lavalier microphones
Sennheiser MKE2 omnidirectional lavalier microphones
2 Sennheiser ME 2 omnidirectional lavalier microphones
Sennheiser HSP2 omnidirectional headset microphones
 WIRED Microphones: Stage & Studio2 AKG C451 Stereo Pair (Instrument) Small-Diaphragm Condenser
AKG D12 VR (Kick/Base) Dynamic
AKG D112 (Kick/Base) Dynamic
Audio Technica AT857  (Podium)
Audio Technica AT815ST Stereo Long Throw Shotguns, Zeppelins and Dead Cats
Audix OM7 (Vocal) Hypercardioid
EV RE20 (Vocal/Instrument) Dynamic Cardioid
EV RE27 (Vocal/Instrument) Dynamic Cardioid
Neumann KMS 105 Black - (Vocal Hand)
Neumann KMS 105 Nickel Silver - (Vocal Hand)
Neumann KM 184 Black Stereo Pair - (Instrument) Small-Diaphragm Condenser

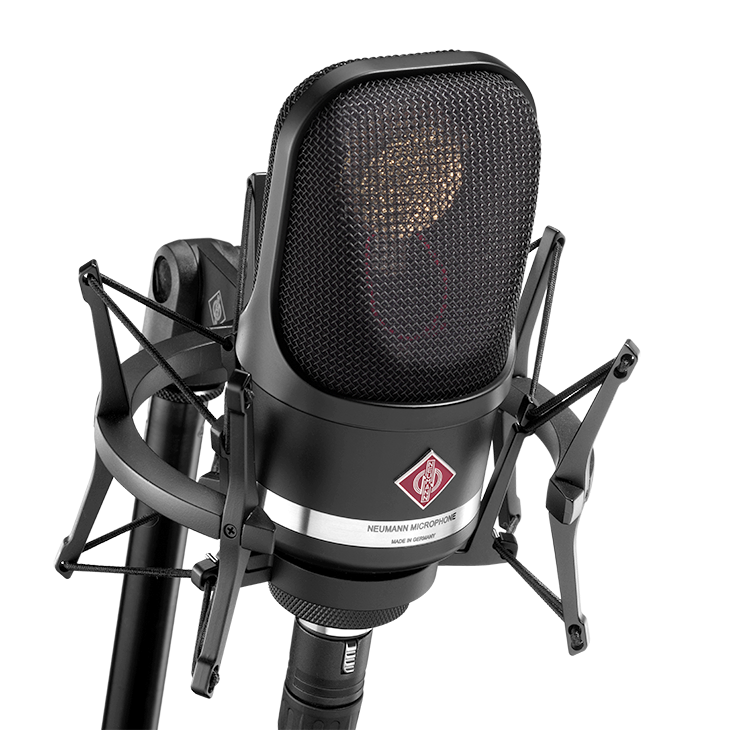

Neumann TLM 107 Black Stereo Pair - (Vocal/Instrument) Large-Diaphragm
Neumann U 87 Ai (Vocal/Instrument) Large-Diaphragm Condenser
Rode NT1000 (Vocal/Instrument) Large Diaphragm Condenser
Sennheiser MD 421-II (Vocal/Instrument) (Drums) Cardioid
Sennheiser MD 441-U (Vocal/Instrument) Super Cardioid
Sennheiser MK4 (Vocal/Instrument) Large Diaphragm Condenser
Sennheiser e609 (Instrument/Guitar) Super-Cardioid
Sennheiser e835 (Vocal Hand) Dynamic Cardioid
Sennheiser e904 (Drums) Cardioid Dynamic
Sennheiser e906 (Instrument) Super-Cardioid
Sennheiser e914 (Instrument) Small-Diaphragm Condenser Cardioid
Shure SM 27 (Vocal/Instrument) Large Diaphragm Cardioid
Shure Super 55 (Dynamic (Vintage - Elvis)
Shure SM 57 (Instrument) Cardioid Dynamic
Shure SM 58 (Vocal Hand) Cardioid Dynamic
Shure SM 58s (Vocal Hand) Cardioid Dynamic w/Switch
Shure Beta 87A (Vocal Hand/Instrument) Super-Cardioid

SOUND DESIGN
WILD AND SYNC

Zoom F8n Pro Field Recorder/Mixer 8 input/10 tracks w/Timecode

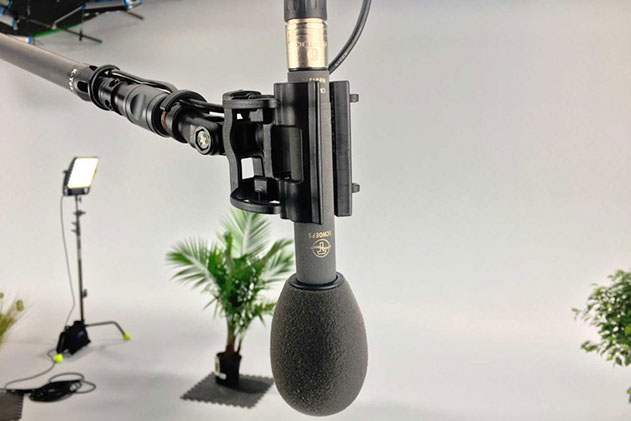

 1 Schoeps CMC 6  | MK 41 Supercardioid Condenser and Cinela Windshield
 1 Sennheiser MKH 816T-F Shotgun Mic and Windshield
 1 Sennheiser MKH 416 Shotgun Mic and Windshield
 2 Sennheiser MKH 8040 Stereo Pair Mic's - Condenser
 1 Cinela ALBERT ORTF-8000 Windshield for Sennheiser MKH 8040's
 2 Auray BP-28CC Carbon Fiber Boompole 7.7' and 20'
