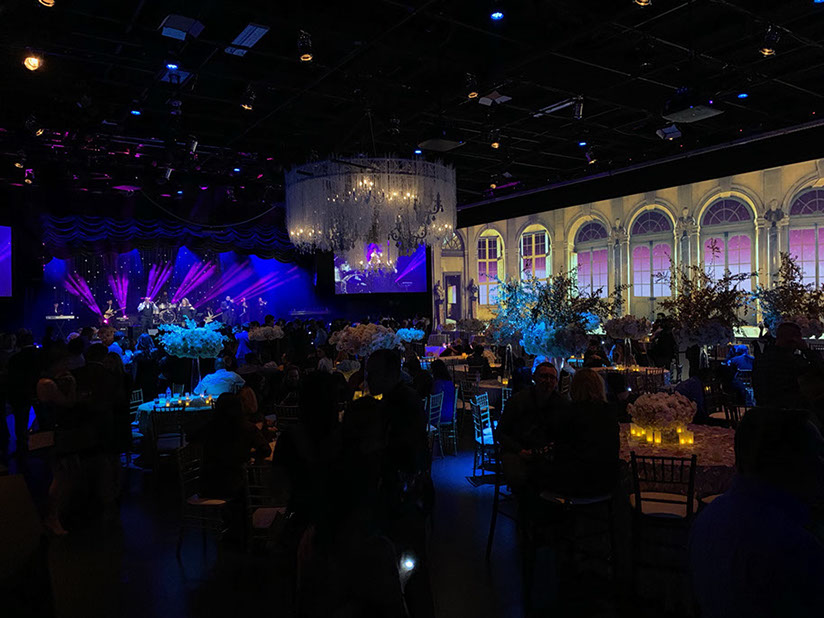

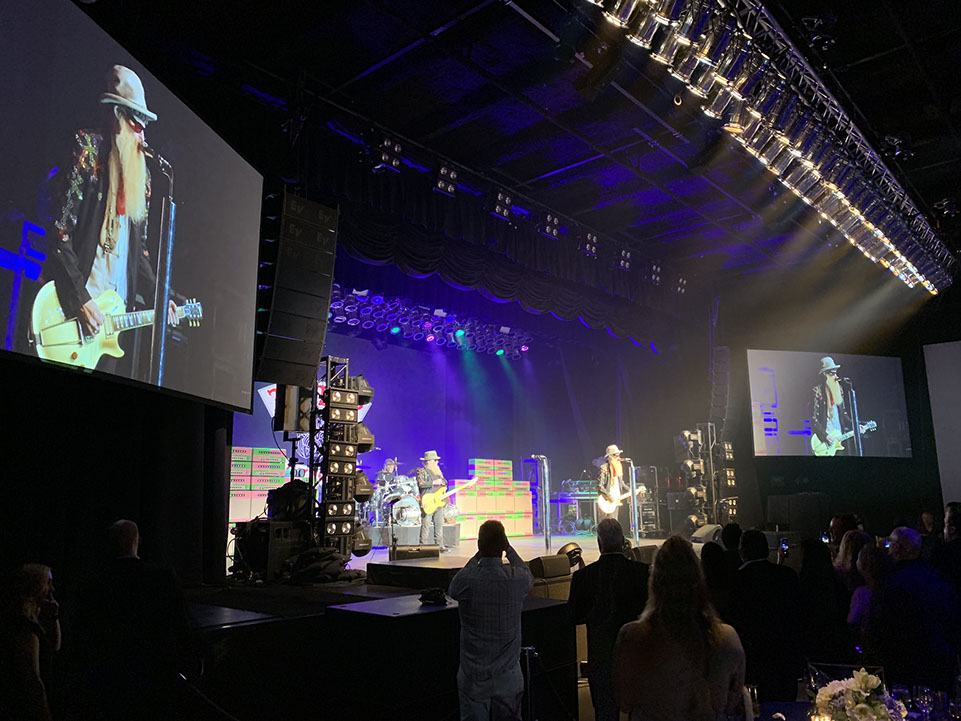

Soundstage A

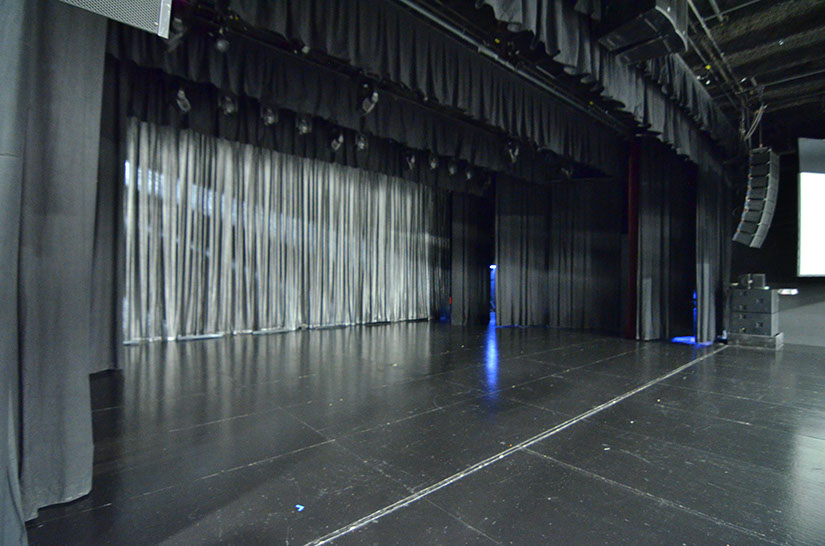

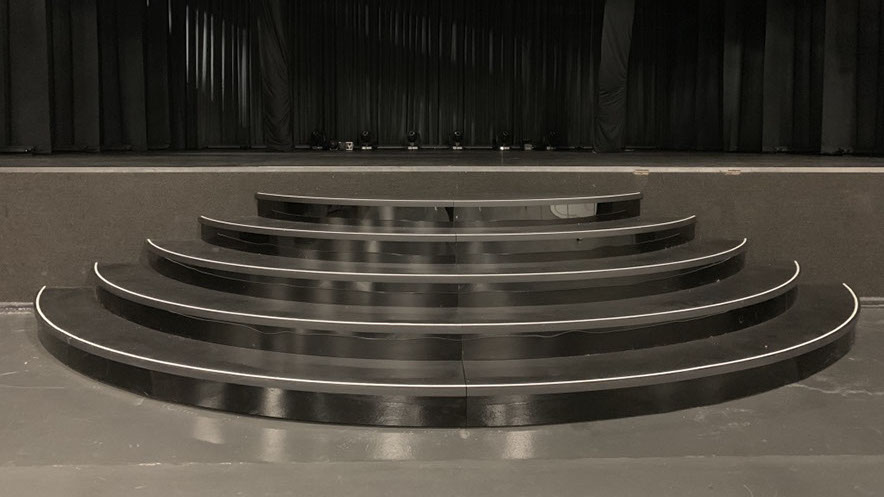

PERFORMANCE STAGE/PLATFORM









































































































































































































































































































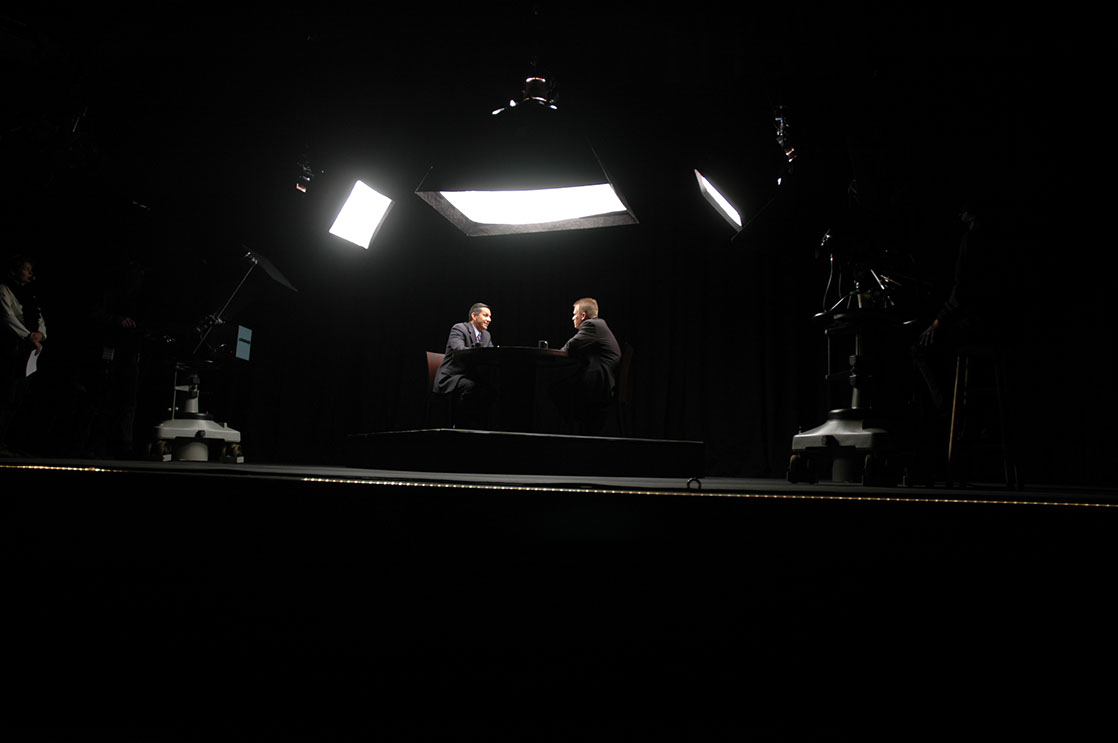

CONVENTIONAL STAGE LIGHTING

On the Stage platform, there is a general white (3200K) wash both back and key (front) light. The back lights are 6-1k Fresnel's focused down mid-stage and down-front apron. The front key wash consists of 6-1K Fresnel's (all barn doored) focused mid-down stage and front apron. (Most of the tungsten stage lighting is currently being retired out to LED.)



There are 7-150w LED Ellipsoidals with 26 degree lens, front and back, down stage right, center, and stage left, hanging focused at 45 degrees.

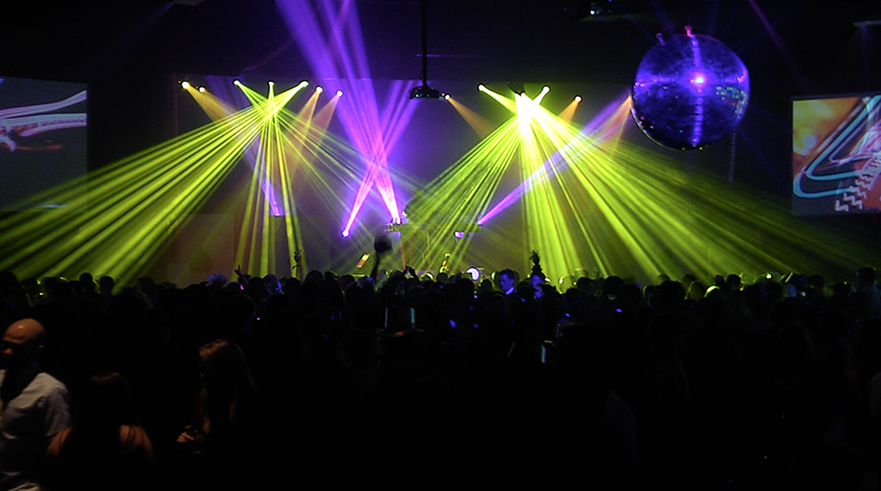

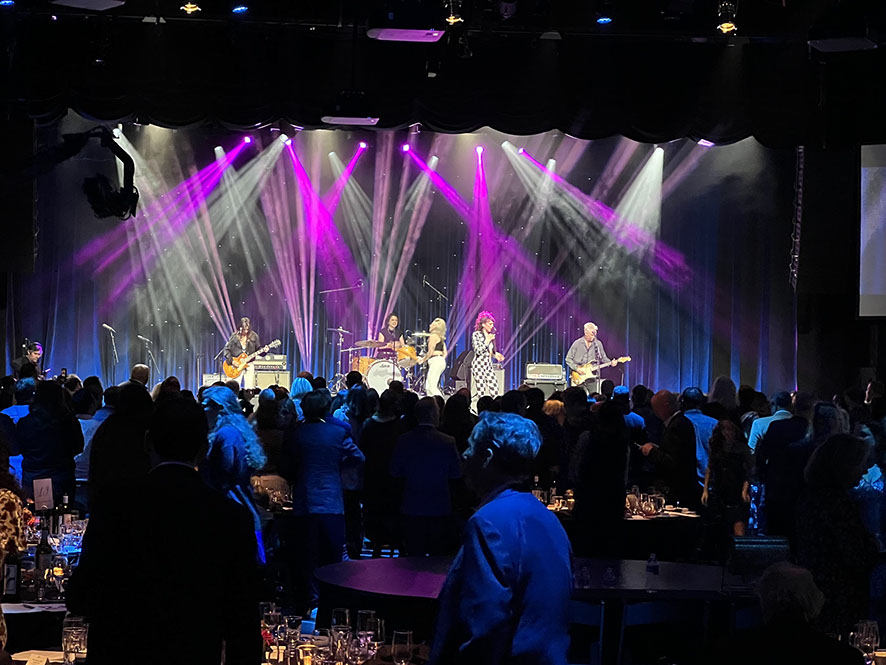

INTELLIGENT (ROBOTIC) LIGHTING

HIGH END SYSTEMS - ROAD HOG 3 - FULL BOAR

Grand MA II Coming to Soundstage A - January 2018

____________________________________________



4 Units

Units are positioned down stage 25ft in house.

PR Lighting Solo 1200TM

1200W Philips MSR Moving Head





Color Temperture: 6000K

Colors:

- 1 Wheel with 6 dichroic colors plus clear

- Bi-color effect with variable speeds

- Bidirectional rainbow effect variable speeds

- Stepper or linear color speed



Rotating Gobo Wheel

- 5 interchangeable bi-direction plus open

- Variable speed



Fixed Gogo Wheel

- 7 interchangeble plus open

- Gobo wheel scrolls with variable speeds

- Gobo diameter: 36.3mm

- Gobo Image diameter 31.5mm



Prisms

- 1x2 facet, 1xwhite, 1x3 facet

- All indexable, bidirectional rotating variable



Filters: 1 CTO, 1 Frost

Dimming: 0 - 100% linearly

Shutter/Strobe: Dual blade for blackouts 0.3-6F.P.S.

Beam Angle: 16 - 22.6

DMX-512 18 channels



Code RP-2902

Unit Weight: 101.5 lbs



__________________________________________________________________________





13 Units

10 units are on stage electric 3 & 4

PR Lighting Solo 575TM



Philips MSR 575W 2/discharge lamp





Color Temperature; 7200K

Colors:

- 1 color wheel with 6 dichroic colors plus clear

- Rainbow effect with adjustable speed



Gobos:

- 5 interchangeable bi-direction plus open

- variable speed

-Gobo same as 1200



Prisms: Same as 1200



Beam 14-27 linear zoom

DMX-512 16 Channels



Code PR-2586

Weight 90 lbs



__________________________________________________________________________



8 Units

on stage 4th electric



Clay Paky Sharpy





189W discharge lamp (Platinum 5R)

Perfectly parallel, laser-like beam

Color wheel with 14 fixed colors (Interchangeable)

Gobo wheel with 17 fixed gobos (Interchangeable)

8 facet rotating prism



__________________________________________________________________________



4 Units

Up-Stage Floor "Look Like Sharpy's"



OmniSistems

Beam 5R 160W Phillips MSD





Power Consumption 315W



Colors: 1 color wheel with 9 colors + white, bi-directional rainbow effect



Gobos:

- 12 bi-directional, indexing, rotating gobos + open, gobo shake



Pan/Tilt: P 520 - T 260 (8-bit or 16 bit) Adjustable Speed



Features:

- 15 effect macros

- 3 facet & 8 facet prism

- Full Range Dimmer

- Duel strobe/shutter blades, synchronous & non, random strobe

- DMX-512 (12 or 14 channels)





__________________________________________________________________________



40 Units

over studio/house floor on aprox.12ft centers



Omnisistems

Spark 7 Zoom LED





LEDs: 7 x 15W RGBW (4 in 1)

MAX Power 115w

Beam Angle: Zoom 10 x 60 degrees

RGBW Color Mixing

Dimming 0-100%

Fast, Smooth, sad Silent Movement

Auto-Repositioning

RDM Functions

Strobe

16 Bit

Weight 13.2 lbs

3200 Lumen, 6000 lux @ 25 m

DMX channels 15/24/14/16



__________________________________________________________________________



24 Units

on Cyclorama Wall, used as a "Wash" end to end 150ft



Omnisistems

Colorblinder 150TM









Power consumption: 150W

LEDs: 5 x 30W COB 3 -in - 1 RGB

DMX 512 (1/3/5/7/15 Ch.)





__________________________________________________________________________



Up-Stage Back Drop



OmniNite

20' x 40' LED Curtain





- OS-9044 (RGBA LEDs)



- DMX 512 (4 Channel)



LED Size 5mm/tile





__________________________________________________________________________



Been Up-Graded new information coming.......



8 Units

Up-Stage Floor, Wash for Silver Scrim Back Drop in front of LED Curtain



OS-8080 RGB Wash Light
